Motherboards

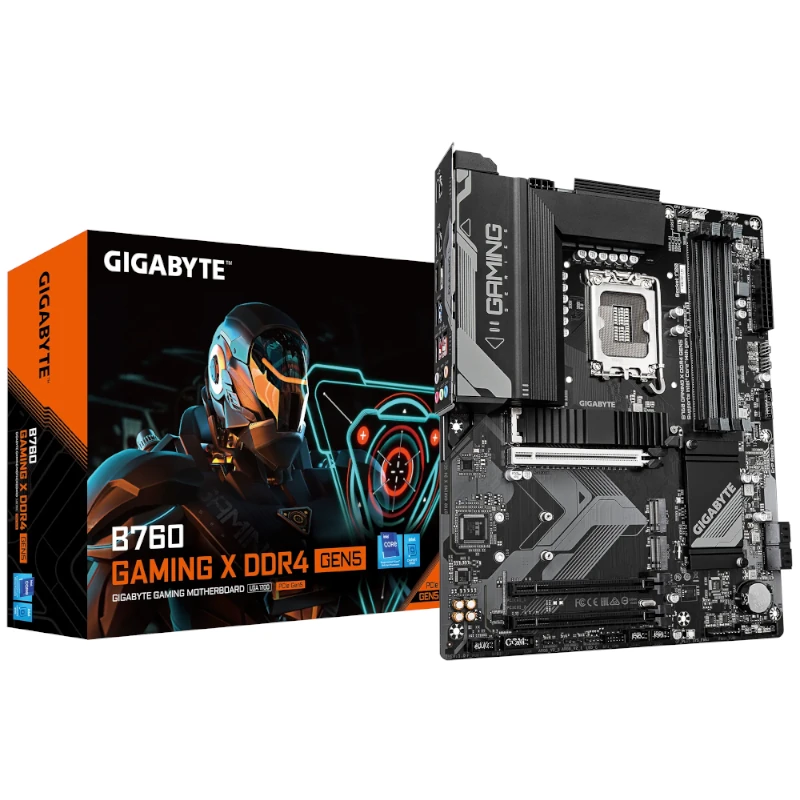

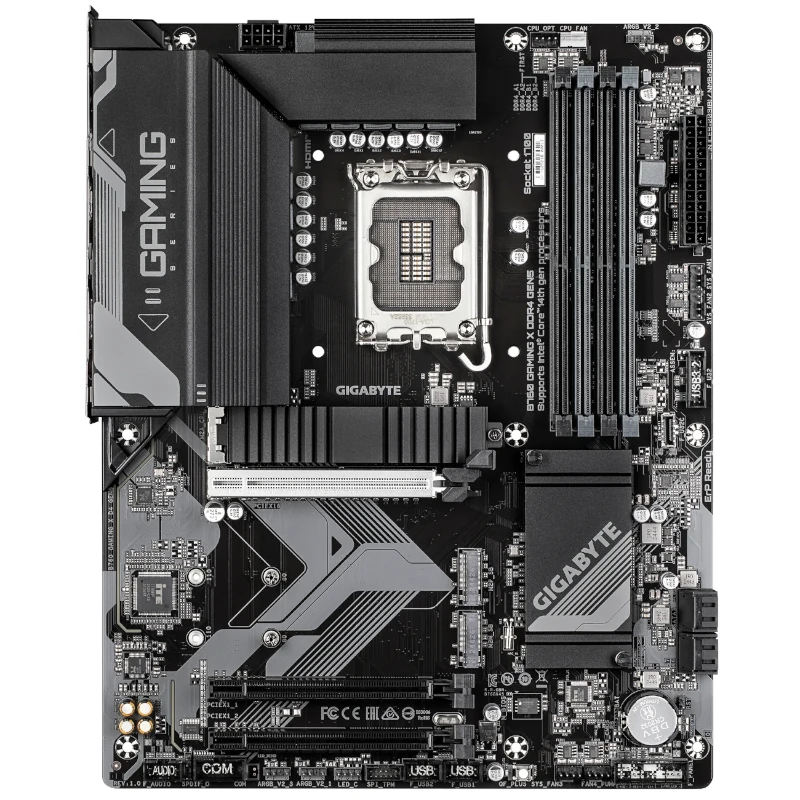

Gigabyte Placa Base B760 GAMING X D4 GEN5 ATX 1700
Out of stock right now
This exact reference is not currently available. Request a stock alert below and we will email you as soon as it is available again.
Get a stock alert
Sign in to request an alertWe will email your verified account once this product can be ordered again. One alert per product, with no marketing messages.
- Almacenamiento
- 3 x M.2 PCIe 4.0 x4/x2
- 4 x SATA 6 Gb/s
- RAID 0 / 1 / 5 / 10 Red
- Realtek 2.5 GbE LAN Audio
- Realtek Audio CODEC
- Audio HD
- 2 / 4 / 5.1 / 7.1 canales
- S/PDIF Out Sistema operativo
- Windows 11 64-bit
- Windows 10 64-bit Dimensiones
- 305 x 244 mm Fecha Revisión 02-02-2026 por IS
- Plataforma
- - Intel LGA1700
- Chipset
- - Intel B760 Express
- CPU Soportados
- - Intel Core 12ª Gen - Intel Core 13ª Gen - Intel Core 14ª Gen - Intel Pentium Gold - Intel Celeron
- Memoria
- - 4 x DDR4 DIMM - Arquitectura de doble canal - Velocidades: 2.133 / 2.400 / 2.666 / 2.933 / 3.000 / 3.200 / 3.300 / 3.333 / 3.400 / 3.466 / 3.600 / 3.666 / 3.733 / 3.800 / 3.866 / 4.000 / 4.133 / 4.266 / 4.300 / 4.400 / 4.500 / 4.600 / 4.700 / 4.800 / 4.933 / 5.000 / 5.133 / 5.333 MT/s - Capacidad máxima: 128 GB - Compatibilidad ECC Un-buffered (funciona en modo no ECC) - Compatibilidad XMP
- Slots Expansión
- - 1 x PCI Express x16 Gen 5.0 - 2 x PCI Express x16 Gen 3.0 (x1)
- Gráficos
- - Gráficos integrados Intel HD Graphics - 1 x DisplayPort 1.2 (4.096 x 2.304 @ 60 Hz) - 1 x HDMI 2.1 (4.096 x 2.160 @ 60 Hz)

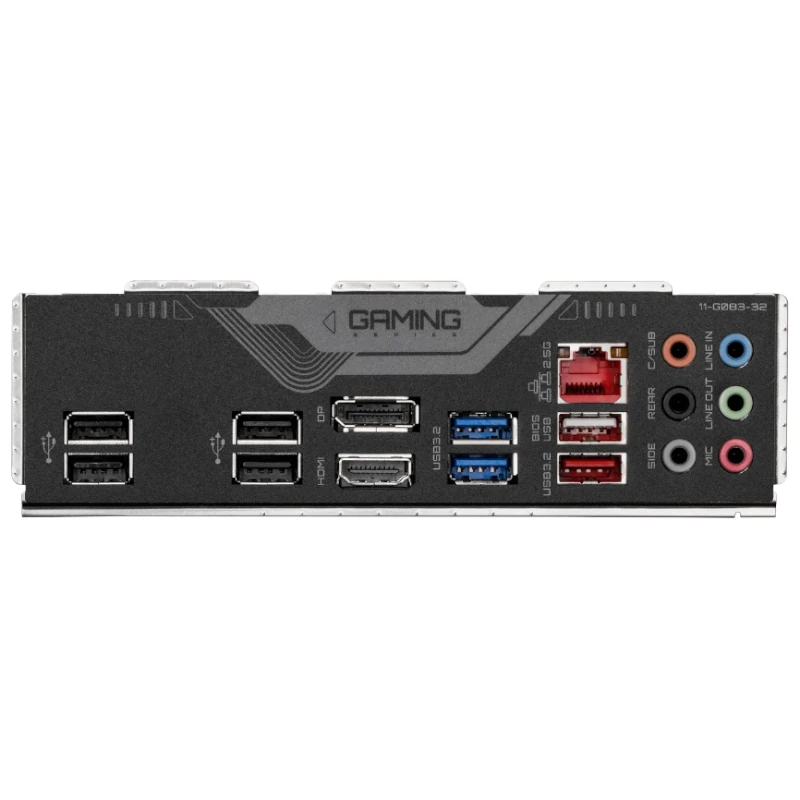

- Puertos E/S, Conectores
- Internos - Conector ATX 24 pines - Conector ATX 12V 8 pines - 1 x conector ventilador CPU - 1 x conector CPU / bomba RL - 3 x conectores ventilador sistema - 1 x conector sistema / bomba RL - 3 x conectores RGB direccionables Gen2 - 1 x conector RGB - 3 x M.2 Socket 3 - 4 x SATA 6 Gb/s - Conector panel frontal - Conector audio frontal - Conector S/PDIF Out - Conector USB Tipo C (USB 3.2 Gen 2) - Conector USB 3.2 Gen 1 - 2 x conectores USB 2.0 - Conector TPM - Conector puerto serie - Botón Q-Flash Plus - Jumper reset - Jumper Clear CMOS Traseros - 1 x USB 3.2 Gen 2 Tipo A - 2 x USB 3.2 Gen 1 - 5 x USB 2.0 - 1 x DisplayPort - 1 x HDMI - 1 x RJ-45 - 6 x jacks de audio Controlador E/S - iTE I/O Controller
- Fecha Revisión
- 02-02-2026 por IS
Stock observed: 01/09/2026 13:08
