Motherboards

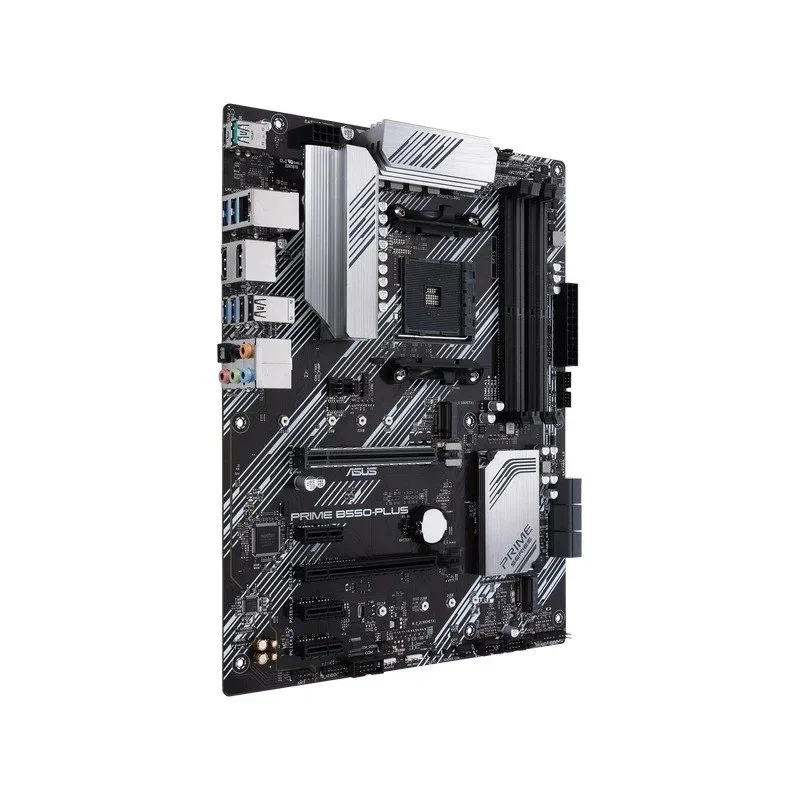

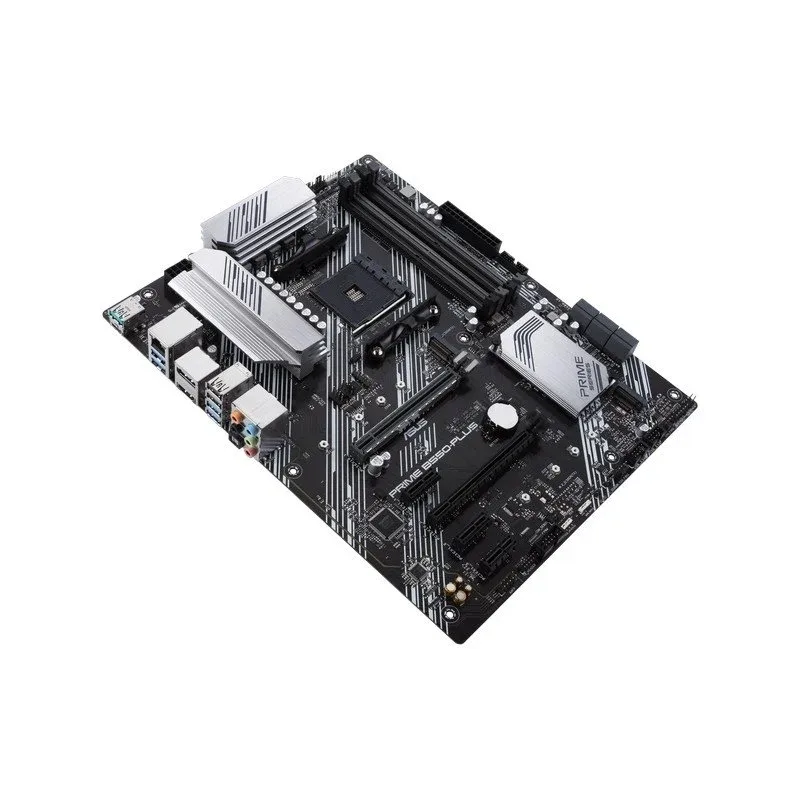

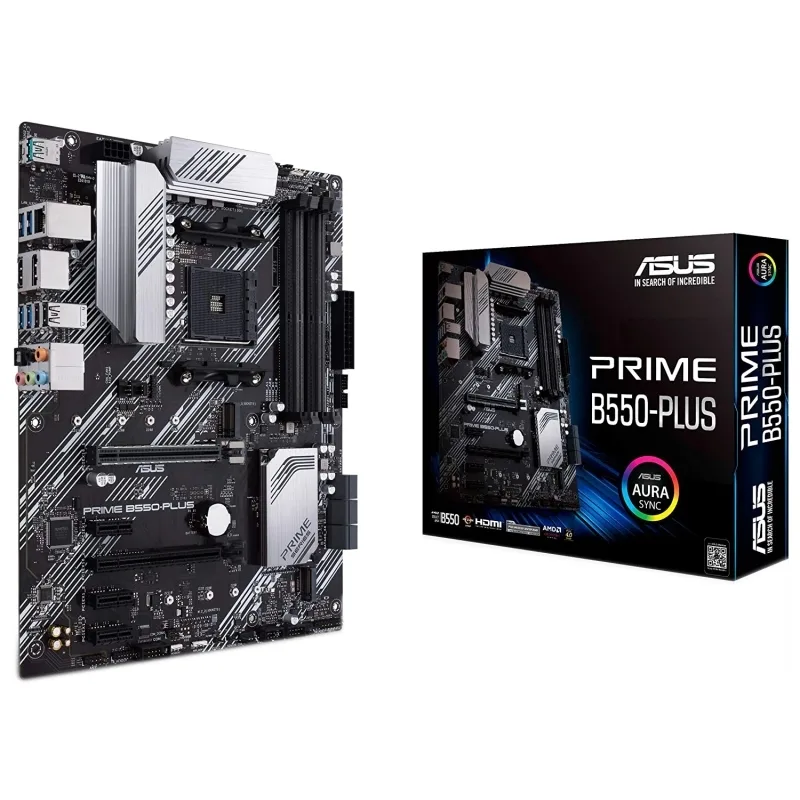

ASUS Placa Base PRIME B550-PLUS ATX AM4
118.11 € · tax included
Estimated delivery: 2026-09-07
(90MB14U0-M0EAY0)
CPU
Soportados
- Plataforma
- - ATX (30.5 cm x 24.4 cm)
- Chipset
- - AMD® B550
- CPU Soportados
- - Admite AMD Ryzen™ 3ª generación y AMD Ryzen™ 3ª generación con procesador de gráficos Radeon™ con Socket AMD AM4
- Memoria
- - 4 x Memoria DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered- Arquitectura de memoria Dual Channel
- Slots Expansión
- 3rd Gen AMD Ryzen™ Processors- 1 x PCIe 4.0 x16 (x16 mode)AMD B550 Chipset- 1 x PCIe 3.0 x16 (x4 mode)- 3 x PCIe 3.0 x1
- Gráficos
- - 1 x DisplayPort 1.2- 1 x HDMI 2.1(4K@60HZ)- Multi-GPU compatible
- Puertos E/S, Conectores

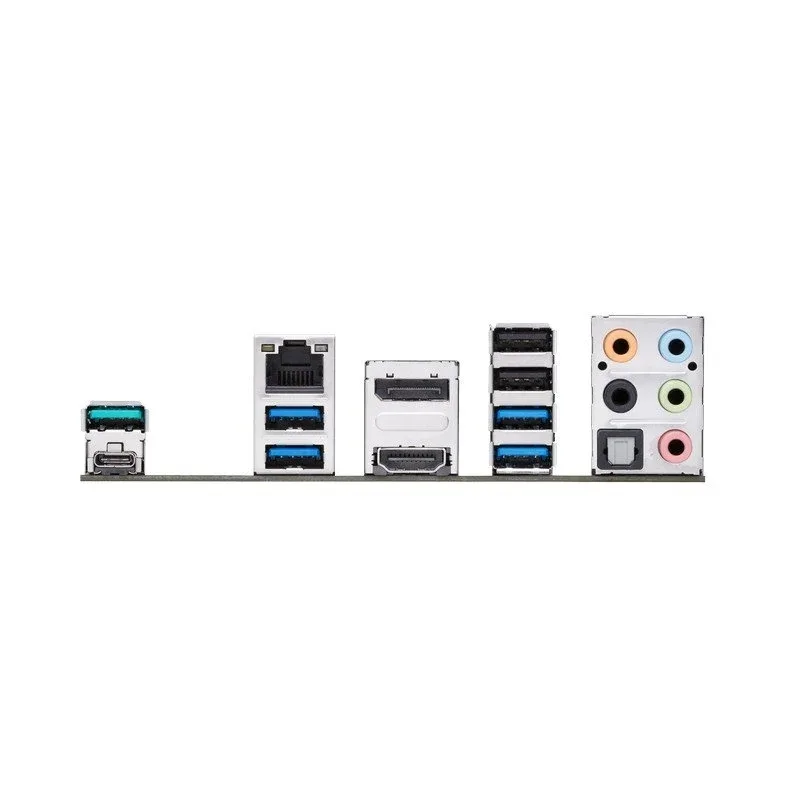

- Internos- 2 x Conector(es) USB 2.0 soporta(n) 4 USB 2.0 extra- 1 x Zócalo M.2 3 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)- 2 x Conector Aura para tiras RGB- 6 x Conector(es) SATA 6Gb/s- 1 x Conector(es) ventilador de CPU- 3 x Conector(es) ventilador chasis- 1 x AIO_PUMP connector- 1 x Conector Ventilador CPU OPT- 1 x Conector de alimentación EATX de 24 contactos- 1 x Cabezal Thunderbolt- 1 x Conector de audio en panel frontal (AAFP)- 1 x Conector para sensor térmico- 1 x Addressable Gen 2 header(s)- 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)- 1 x Jumper Clear CMOS- 1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)- 1 x SPI TPM header- 1 x 8-pin EATX 12V Power connectors- 1 x Conector de panel de sistema- 1 x Conector puerto COMExternos- 1 x DisplayPort- 1 x Red (RJ45)- 1 x HDMI- 1 x Salida S/PDIF óptica- 5 x Jack(s) de audio- 2 x USB 3.2 Gen 2 (color azul) (1 x Tipo A+1 x Tipo C)- 4 x USB 3.2 Gen 1 (azul) Tipo A- 2 x USB 2.0
- Fecha Revisión
- 14-09-2020 por MSB
